Do you have a SIEM installation based on Elasticsearch (like the NetEye 4 SIEM Module) and are you sending data to it from your hosts? Then you’ll surely want to know whether your host is actually sending data, or if nothing is coming out at all. For this I made available a simple icinga/nagios plugin to check if data based on your search parameters is located within an Elasticsearch Index.
# /neteye/shared/monitoring/plugins/check_elasticsearch_query --help
Check a count of number of events fount in elasticsearch over a query and timeframe
Usage: [-H <host>] [-p <port>] -q <query> [-t <timeframe>] [-w <count>] [-c <count>] [-L]
-h, --help : this help
-V, --version : program version
-H, --host : host/address of elasticsearch (default: elasticsearch.neteyelocal)
-p, --port : tcp port of elasticsearch (default: 9200)
-i, --index : elasticsearch index name (default: logstash-*)
-q, --query : elasticsearch query string
-t, --time : timeframe for search from now back f.ex. 1h or 1d (default: 1h)
-w, --warning : warning count (default: not checked)
-c, --critical: critical count (default: not checked)
-L, --checkforless: check critical/warning for <= instead for >= which is the default
-C, --curlcmd : The CURL command to use to connect to elasticsearch (default: /usr/share/neteye/elasticsearch/scripts/es_curl.sh)
f.ex.: /usr/bin/curl -E 'ES_CERT_PEM' --key 'ES_CERT_KEY'
check_elasticsearch_query - - Copyright Juergen Vigna - Wuerth Phoenix srl.
This Monitoring plugin comes with no warranty. You can use and distribute it
under terms of the GNU General Public License Version 2 (GPL V2) or later.
As you can see from the above help, the default parameters are set so that they work on a NetEye SIEM installation, otherwise you’ll have to change the parameters for your ELK installation. An important note is that the -q parameter for the query is just a filter, so you can use for instance host.name: $host.name$ in your Icinga configuration.
Another important thing is that you may check if there are too many or too few entries for this host using the -L flag.

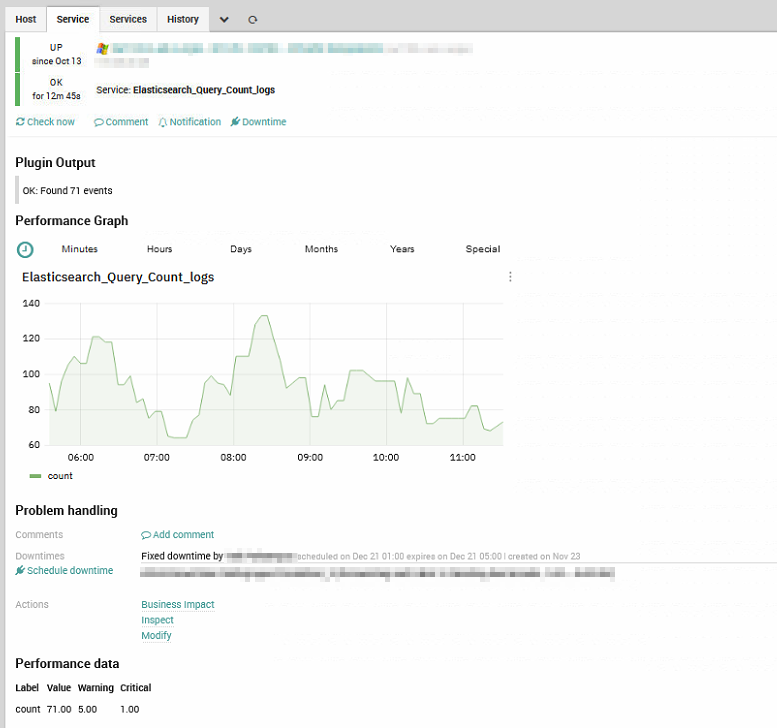

Icinga Service View
The above image shows a typical usage of this plugin to check if a host is still writing data to your Elasticsearch Database using the filter host.name: $host.name. Obviously if the host is not sending data permanently you’ll have to set the Time filter too so that you can be sure it will write data at least once a day (you can change it later to once a day).
Make your SIEM installation more stable using this approach.
